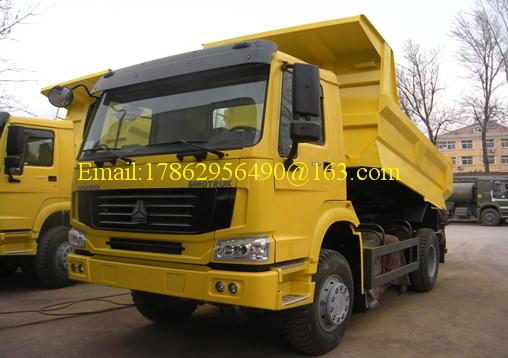

HOWO 4x2 U-type 336 HP DUMP TRUCK With German ZF8118 steering gear box
Description:
HOWO 4x2 U-type Dump Truck is produced by SINOTRUK.The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner.Adopting full hydraulic transmission, it can bring the power of engine into full play amply.Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.Rich experience and well after-sale service.
Packing:
Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.Rich experience and well after-sale service.
Our advantages:
1. Adopt HW76 Cab single bunk,new type seat,adjustable steering wheel.
2. Warranty: one year or 10000 km
3. Production time: within 35 working days
4. After-sale service team:highly trained with overseas working experience
5. Shipping:professional transport team,safety and quickly
6. Support service:response quickly in 12 hours and provide professional technical
Main Discription:
| Truck Model | ZZ3167N3811 |
| Dimension | 7514x2496x3386mm |
| Cargo body size | 5400x2300x1400mm |
| Wheel base | 3800mm |
| Volume of cargo | 18m3 |
| Thickness | bottom:8mm, side:6mm |
| Gross of weight()kg | 16000 |
| Loading Weight(kg) | 25000 |
| Fuel tanker capacity | 400L with locking fuel cap |
| Displacement | 9.726L |
| Fuel consumption(L/100km) | 32 |
| Engine | 4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and inter cooling |
| Horsepower | 336HP |
| Model | WD615.69 |
| Emission standard | EURO II |
| Transmission | HW 15710,10 forwards and 2 reverse |
| Steering system | ZF8118 |
| Front axle | HF9 |
| Rear axle | HC16 |
| Tire | 12.00R20 ,7 pieces |
| Cab | HW76 cab,(single sleeping, with air-condition), all-steel forward control |
| Electrics | Operating voltage:24V,negative grounded 24V,7.5KW.Starter:24V,7.5 Kw 28V,1500W.Alternator:3-phase,28V,1500 W 2x12V,165Ah.Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light |
| Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance |
| Brake system | Service brake:dual circuit compressed air brake Parking brake (emergency brake):spring energy,compressed air operating on rear wheels |
