GR215 Road Construction Machinery Cummins Engine / Yellow XCMG 215hp Motor Grader

Name: GR215 Road Construction Machinery Cummins Engine Yellow XCMG 215hp Motor Grader
Brand: XCMG
Price: 300 USD

Wholesale GR215 Road Construction Machinery Cummins Engine / Yellow XCMG 215hp Motor Grader from china suppliers

Brand Name : XCMG

Model Number : GR215

Certification : CE/ISO

Place of Origin : China

MOQ : 1 unit

Price : 300 Unit/Units per Month

Payment Terms : L/C, T/T

Delivery Time : 30-45 work days

Packaging Details : Nude

Engine model : 6CTA8.3

Maximum lift above ground : 450mm

Maximum depth of cutting : 500mm

Engine Brand : Cummins

Rated power : 160kW

Moldboard width height : 4270*610mm

Forward Speed(km/h) : 38

Reverse Speed(km/h) : 23

Contact Now

Yellow XCMG 215hp Motor Grader GR215 Road Construction Machinery Cummins Engine

Product Description

1.Using Cummins 6CTA8.3-C215 turbocharged diesel engine, the output torque and power reserve factor is large, and the fuel consumption is low.

2.The gearbox and torque converter are electronically controlled power shifting and fixed shaft gearboxes. The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.

3.The drive axle is a dedicated XCMG axle.

4.Rear axle main drive is equipped with "NO-SPIN" without self-locking differential. When one wheel slips, the other wheel can still transmit its original torque.

5.The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.

6.The sealed cab is used to configure the air conditioning system. The interior parts are sleek and compact plastic parts, which fully reflects the needs of ergonomics.

Specification

Description	Unit	Parameter value
Engine model		6CTA8.3-C215
Rated power/speed	kW/rpm	160/2200
Overall dimension (standard)		8970x2625x3420
Total weight (standard)	kg	16100
Tire specification		17.5-25
Ground clearance (front axle)	mm	430
Tread	mm	2156
Space of front and rear axles	mm	6219
Space of middle and rear wheels	mm	1538
Forward velocity	km/h	5/8/11/19/23/38
Reverse speed	km/h	2005/11/23
Tractive effort f=0.75	kN	113.8
Maximum gradeability	%	30
Tire inflation pressure	kPa	260
Working system pressure	MPa	18
Transmission pressure	MPa	1.3-1.8
Maximum steering angle of front wheel		±50°
Maximum slant angle of front wheel		±17°
Maximum oscillating angle of front axle		±15°
Maximum oscillating angle of equilibrium box		Front15°,Rear15°
Maximum steering angle of frame		±27°
Minimum turning radius	m	7.3

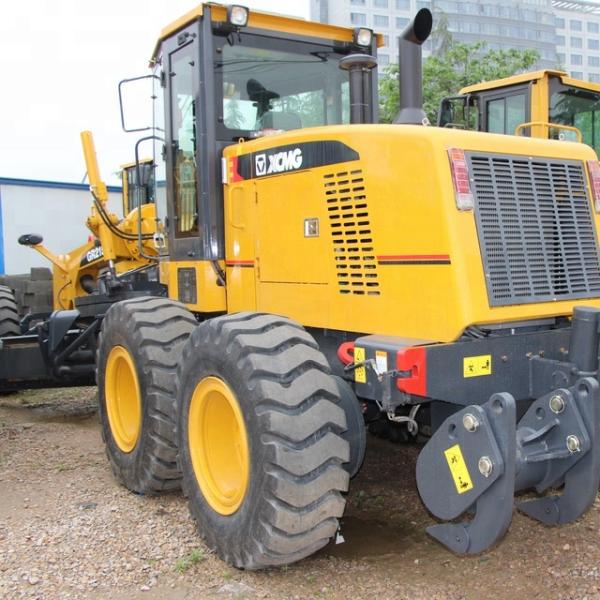

Product picture

GR215 Road Construction Machinery Cummins Engine / Yellow XCMG 215hp Motor Grader
