Sinotruck HOWO 8x4 371hp 40 Tons Dump Truck 12 Wheeler Truck Tipper Euro 2
Product description
1. Chinese famous heavy duty chassis brand in China---Sinotruk
2. Low oil consumption with strong horse power 371hp
3. Large load capacity 40-45ton.
4. Cabin: HW70 with no sleeper bed; HW76 with one sleeper bed. HW79 with two sleeper beds. With air conditioner.
5. LHD or RHD are optional
6. Tipper body: Size could be customized as requirement.
7. One year for three key parts (engine ,gear-box, axle)
Product parameter
| Item No. | Parameters |
| Overall Dimension | 11245x2496x3600 mm |
| Gross Vehicle Weight | 37650 kg |
| Curb weight | 14860 kg |
| Loading capacity | 45000 kg |
| Front axle loading capacity | HF9, 2x9000 kg |
| Rear axle loading capacity | HC16, 2x16000 kg |
| Max Driving Speed | 75 km/h |
| Engine | WD615.47, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Engine horsepower | 371hp |
| Emission Standard | Euro II |
| Displacement | 9.726L |
| Gear Box | HW19710, 10 Forwards gear & 2 reverse gear |
| Steering Gear | ZF 8098, power steering, hydraulic steering with power assistance |
| Clutch | Reinforced diaphragm clutch, diameter 430mm |
| Fuel Tank | 400L Aluminum alloy fuel tank |
| Cabin | HOWO 76 Standard Cab, LHD Two seats with 1 sleeper, with air conditioner, 70° hydraulically tillable to the front. |
| Tire | 12R22.5 Tubeless Tire , 12 pieces with one spare |
| Brake | Service brake: dual circuit compressed air brake Parking brake: spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
| Dump Body Size | Size: 8200x 2300 x 1700mm, 32m3. Q345/B High Tension Steel Dump Body, Steel Thickness: bottom 8mm, side & front 6mm, |
| Tipping hydraulics | Front tipping, Complete set of HYVA Brand Hydraulics System |
Advantage
1. Oil Saving--two kinds of technology route (electric control common rail and EGR), engine characteristic performance curve Improvement, entire car optimizing assembly, empty / full load switch, the latest streamline driving cab reducing wind resistance effectively, reducing self weight by 200--500kg, and etc.
2. Safety--drum brake, tubeless tire, exhaust valve brake technique application, rear axle brake shoe widening, and etc.
3. Driving comfort-- New style air bag seat, four point floating suspension with anti-roll bar, damping device for the cab, double locking seat belt, outside sun shade, drum brake solving brake sway in case of over load, and etc
4. Reliability--all the assembly has passed extremely harsh condition experiments and the verification of over 2 years in bad use condition.
5. Low application cost--large use quantity, complete service and accessory networks and low price.

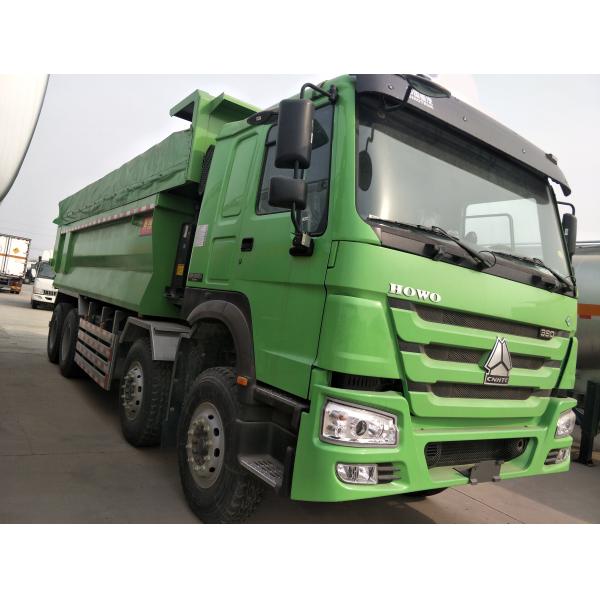

Product picture
